Linear encoders

Linear encoders measure the position of linear axes without intervening mechanical elements. This eliminates a series of potential error sources such as backlash, pitch error, or heating of the recirculating ball screw. Wherever rigorous position accuracy and high machining speeds are needed, linear encoders are essential.

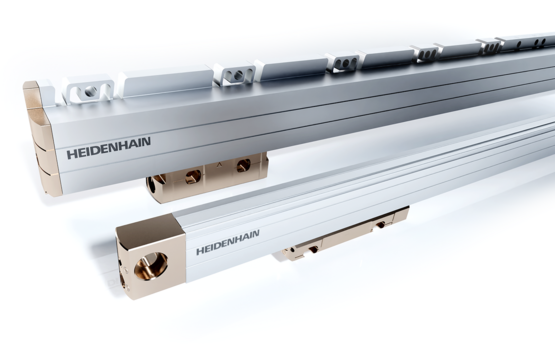

Sealed linear encoders

Sealed linear encoders feature optimal protection from dust, chips, and splash water. They are especially ideal for use in manually operated machine tools and also in numerically controlled machine tools.

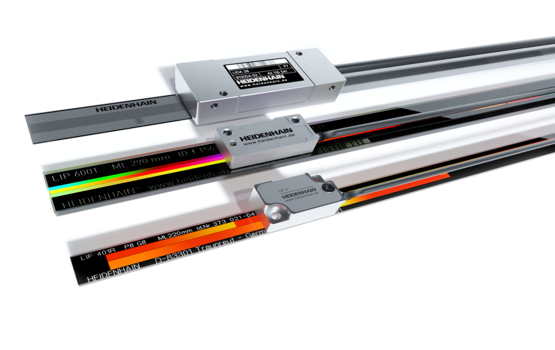

Exposed linear encoders

Exposed linear encoders have zero mechanical contact between the scanning head and the scale or scale tape. Applications include production and measuring equipment in the semiconductor industry, as well as pick-and-place machines and direct drive systems.
