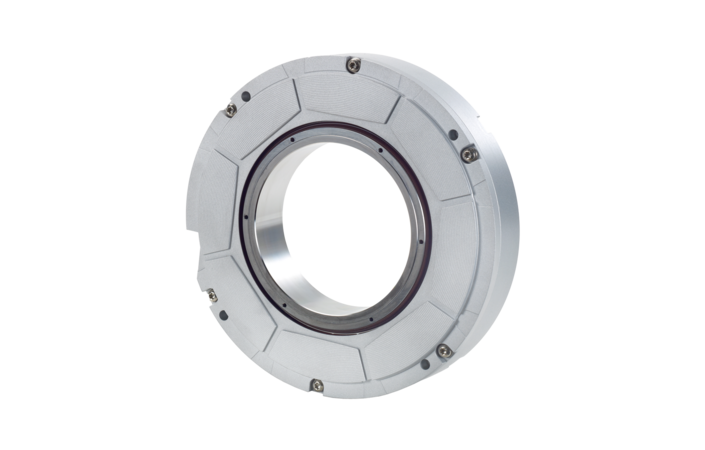

With a purely serial interface, the RCN 8001 series angle encoders permit shaft speeds of up to 1500 rpm, enabling applications that are both highly dynamic and highly accurate.
Easy temperature measurement
Temperature evaluation for the direct drive motor windings can be performed in combination with the EIB 5200 sensor box from HEIDENHAIN. The temperature data and position data are transmitted to the control via the purely digital interface.
Very high accuracy
The RCN 8001 series angle encoders feature a high line count of 32,768 lines and excellent signal quality. Low motor current noise and smooth operating behavior are the benefits, especially in rotary axes powered by direct drive motors.
Thanks to optimized scanning, even liquid contamination and condensation have very little effect on the scanning signals or motor control. Disturbances in the machining process caused by encoder contamination are thereby largely avoided.
Find the right product for you: for further advice, please contact our Sales department by phone or e-mail, or through our online form.
If you're looking for other solutions for your industry, this overviewwill help.
