PP 6000 series

Incremental two-coordinate encoder

Measuring range up to 480 mm x 480 mm
For exact position feedback across a plane
High speed and position stability
Interfaces: EnDat 3 and 1 V_PP

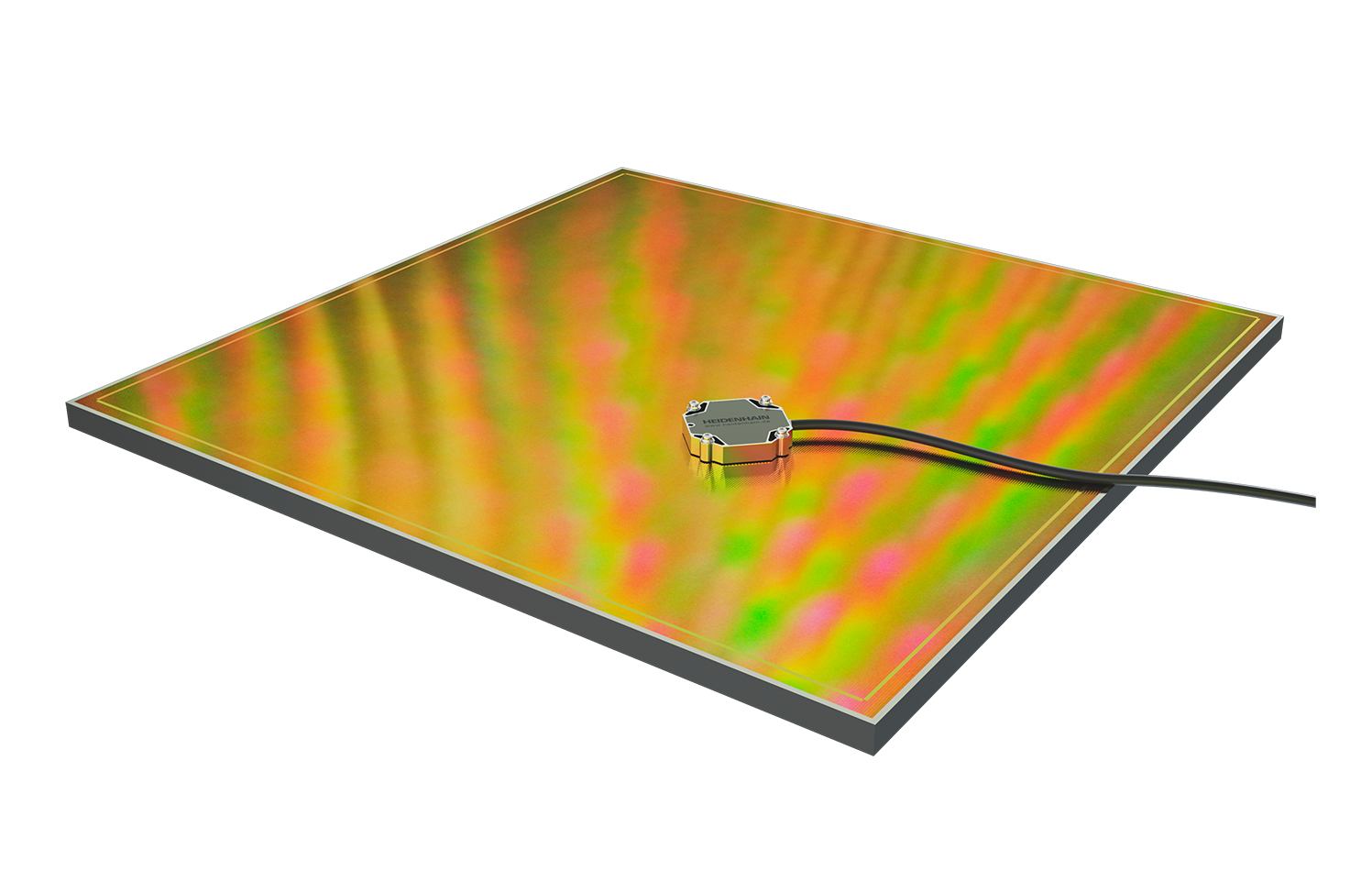

A PP 6000 two-coordinate encoder with a large grid plate covered by a phase grating being scanned by a readhead.

Short measurement distances

The PP 6000 provides position feedback for two axes with just one encoder. Thanks to its two-dimensional scanning design, measurement distances are short, thereby reducing adverse effects and significantly increasing accuracy.

High-accuracy scanning

The PP 6000 two-coordinate encoder uses interferential scanning. Its scale consists of a phase grating on a glass ceramic graduation carrier. Exceptional accuracy and a very small measuring step are among the encoder's features.

Multidimensional feedback

With two scanning heads and a wide-area phase grating on a graduation carrier, measurements in up to three degrees of freedom are possible. This technology makes complex measuring tasks easy through a single compact design.

EnDat 3 interface

The PP 603 scanning head can measure in two degrees of freedom at the same time. With the EnDat 3 data interface, the two resulting position values can be transmitted to the downstream electronics with single-cable convenience.

Find your nearest representative

Downloads

Brochure: MULTI-DOF

Brochure: Cables and Connectors

Brochure: Interfaces

Product variants

The PP 6000 series encoders consist of a grid plate and a scanning head. Please select these two components from the lists. For further support, please contact our Sales department by phone or email, or use our contact form.

View the scanning heads
